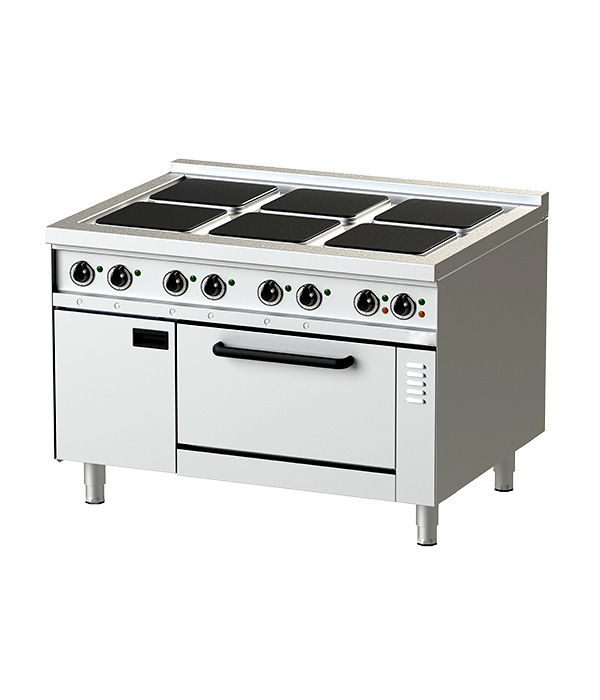

Electric - Hot Plate-12-90 with Static 2/1 GN Electric Oven
$0.00
- Model No: HA-NEHP 12-90 OV
Product Details
Modular electric hot plate with 900 mm depth, powered with 6 sets of 4 kW hot plate heaters. Static 2/1 GN electric oven with 6 kW incoloy rod heater. Usable for boiling, steaming, frying, braising, simmering and steam frying. Oven module usable for roasting and baking. Made of AISI 304 with 2 mm top thickness, equipped with deep drawn collared hot plate element. Oven is sized for 2/1 GN with reflective AISI cavity for superior heat transfer.
- Cooking Surface- Cooking zones : Hot Plate: 6 x 300 x 300 mm,
- Oven : 575 x 666 mm
- Heating zones : 9
- Control type : Hot plate: Modulating power control,
- Oven: Modulating temperature control
- Electrical Supply Data
- Total connected load : 30 kW
- Voltage : 400V, 3NPE AC /50-60Hz
- Recommended fuse : 50 A (slow)
- Net Weight : 199 kg
- Dimensions: 1200 x 900 x 850/880 mm
