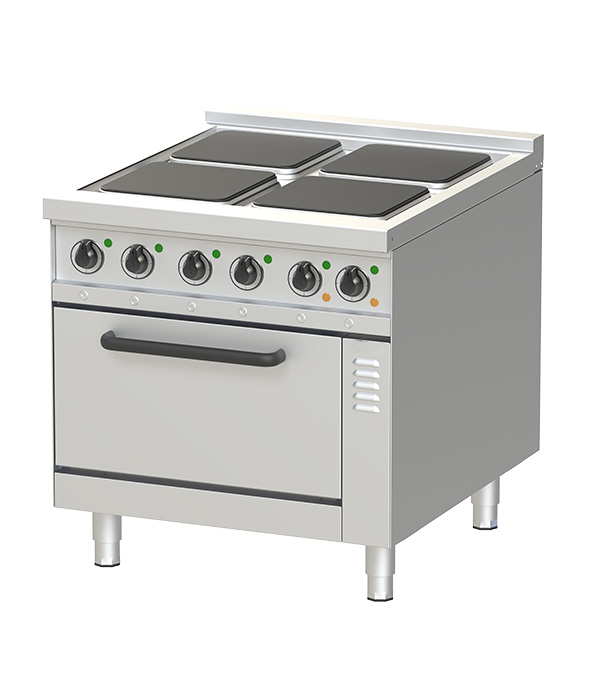

Electric - Hot Plate- 8-90 with Static 2/1 GN Electric Oven

$0.00

  • Model No: HA-NEHP 8-90 OV

Product Details

Modular electric hot plate with 900 mm depth, powered with 4 sets of 4 kW hot plate heaters. Static 2/1 GN electric oven with 6 kW incoloy rod heater. Usable for boiling, steaming, frying, braising, simmering and steam frying. Oven module usable for roasting and baking. Made of AISI 304 with 2 mm top thickness, equipped with deep drawn collared hot plate element. Oven is sized for 2/1 GN with reflective AISI cavity for superior heat transfer.

  • Cooking Surface- Cooking zones : Hot Plate: 4 x 300 x 300 mm,
  • Oven : 575 x 666 mm
  • Heating zones : 7
  • Control type : Hot plate: Modulating power control,
  • Oven: Modulating temperature control
  • Electrical Supply Data
  • Total connected load : 22 kW
  • Voltage : 400V, 3NPE AC /50-60Hz
  • Recommended fuse : 32 A (slow)
  • Net Weight : 159 kg
  • Dimensions: 800 x 900 x 850/880 mm
